| 概要・性能：Performance |

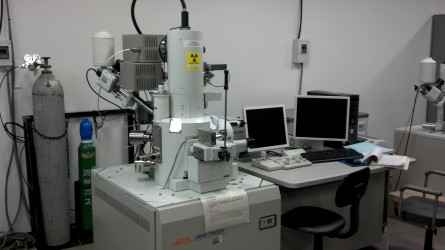

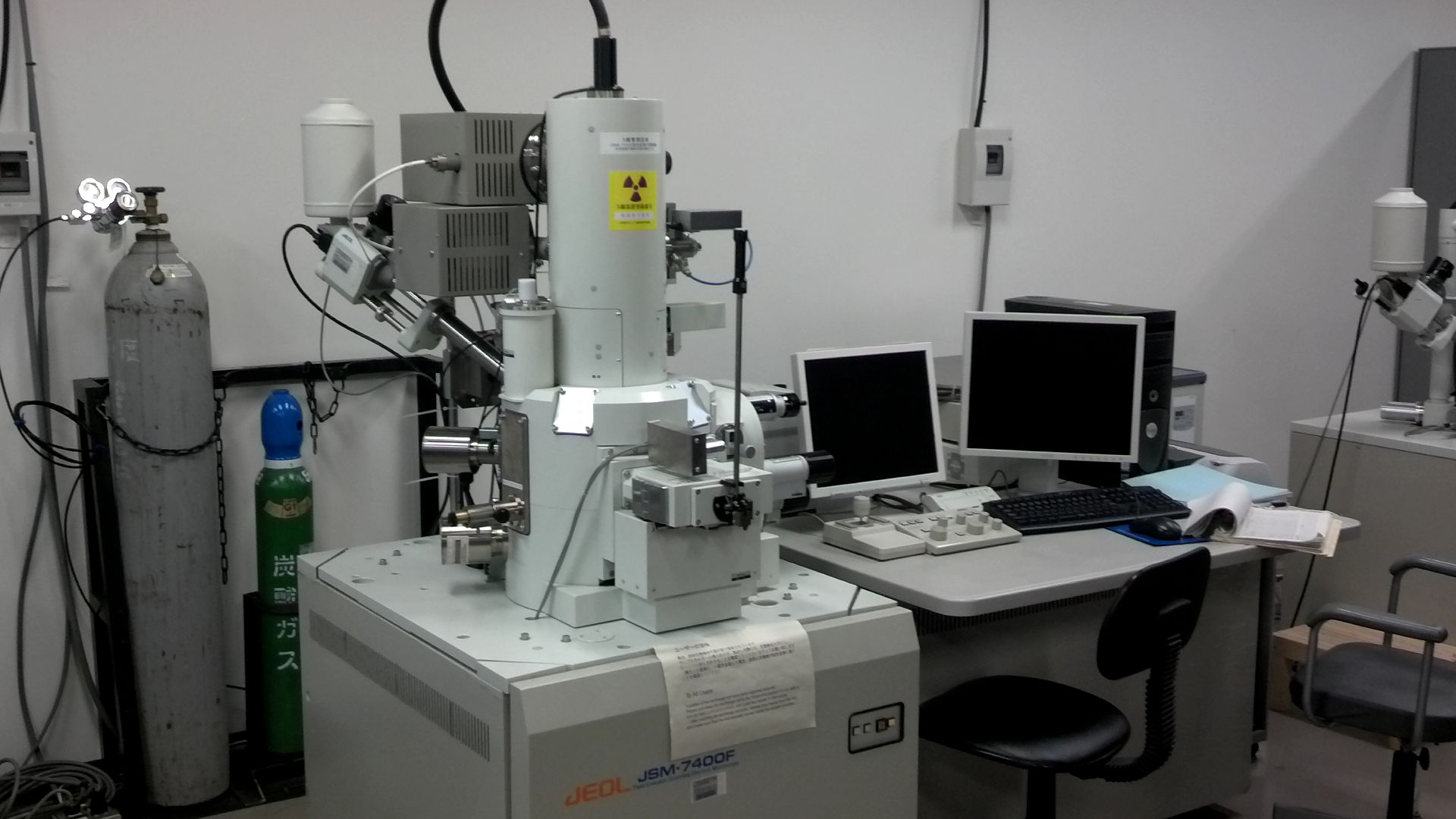

試料表面を収束電子線で走査し、放射する電子線を画像化する装置。表面構造の解析に用いる。 |
|
| 仕様：Specs |
|
二次電子分解能:1.0nm 保証(加速電圧15kV) 1.5nm 保証(加速電圧1kV)
倍率:25-650,000 倍
加速電圧:0.1-30kV
試料ステージ:150mm.オプション200mm.100mm×40mmH
試料移動範囲:X: 70mm Y: 50mm |
| 参考論文：Scholarly Articles |
「The kinetics of radical formation on mechanically activated kaolinite surfaces」、Colloids and Surfaces A: Physicochemical and Engineering Aspects Volume 606、2020、Jun Kameda
「Photocatalytic preparation of encapsulated gold nanoparticles by jingle-bell-shaped cadmium sulfide-silica nanoparticles」、TOPICS IN CATALYSIS 巻: 35 号: 3-4、321-325、2005、Pal, B (Pal, B)
「Synthesis of metal-cadmium sulfide nanocomposites using jingle-bell-shaped core-shell photocatalyst particles」、JOURNAL OF APPLIED ELECTROCHEMISTRY 巻: 35 号: 7-8、751-756、2005、Pal, B (Pal, B)
「Preparation of platinized strontium titanate covered with hollow silica and its activity for overall water splitting in a novel phase-boundary photocatalytic system」、CATALYSIS TODAY 巻: 117 号: 1-3、343-349、2006、Ikeda, S (Ikeda, Shigeru)
「Fabrication of jingle-bell-shaped core-shell nanoparticulate films and molecular-size-responsive photoluminescence quenching of cadmium sulfide cores」、SMALL 巻: 2 号: 7、854-858、2006、Iwasaki, K (Iwasaki, Kentaro)
「Size-selective photocatalytic reactions by titanium(IV) oxide coated with a hollow silica shell in aqueous solutions」、PHYSICAL CHEMISTRY CHEMICAL PHYSICS 巻: 9 号: 48、6319-6326、2007、Ikeda, S (Ikeda, Shigeru)
「Facile hydrothermal preparation and photocatalytic activity of bismuth tungstate polycrystalline flake-ball particles」、CHEMISTRY LETTERS 巻: 36 号: 11、1314-1315、2007、Amano, F (Amano, Fumiaki)
「Encapsulation of titanium(IV) oxide particles in hollow silica for size-selective photocatalytic reactions」、CHEMICAL COMMUNICATIONS 号: 36、3753-3755、2007、Ikeda, S (Ikeda, Shigeru)
「Heterodimeric particle assemblies: Preparation of anisotropically connected spherical silica particles via surface-bound gold nanoparticles」、CHEMICAL COMMUNICATIONS 号: 33、3491-3493、2007、Ohnuma, A (Ohnuma, Akira)
「Visible Light Responsive Pristine Metal Oxide Photocatalyst: Enhancement of Activity by Crystallization under Hydrothermal Treatment」、JOURNAL OF THE AMERICAN CHEMICAL SOCIETY 巻: 130 号: 52、17650-+、2008、Amano, F (Amano, Fumiaki)
「Preparation of nano-structured crystalline tungsten(VI) oxide and enhanced photocatalytic activity for decomposition of organic compounds under visible light irradiation」、CHEMICAL COMMUNICATIONS 号: 48、6552-6554、2008、Sadakane, M (Sadakane, Masahiro)
「Pristine simple oxides as visible light driven photocatalysts: Highly efficient decomposition of organic compounds over platinum-loaded tungsten oxide」、JOURNAL OF THE AMERICAN CHEMICAL SOCIETY 巻: 130 号: 25、7780-+、2008、Abe, R (Abe, Ryu)
「Preparation and characterization of bismuth tungstate polycrystalline flake-ball particles for photocatalytic reactions」、JOURNAL OF PHYSICAL CHEMISTRY C 巻: 112 号: 25、9320-9326、2008、Amano, F (Amano, Fumiaki)
「Z-scheme overall water splitting on modified-TaON photocatalysts under visible light (lambda < 500 nm)」、CHEMISTRY LETTERS 巻: 37 号: 2、138-139、2008、Higashi, M (Higashi, Masanobu)
「Two step water splitting into H-2 and O-2 under visible light by ATaO(2)N (A = Ca, Sr, Ba) and WO3 with IO3-/I- shuttle redox mediator」、CHEMICAL PHYSICS LETTERS 巻: 452 号: 1-3、120-123、2008、Higashi, M (Higashi, Masanobu)
「Metal-Polymer Hybrid Colloidal Particles with an Eccentric Structure」、LANGMUIR 巻: 25 号: 24、13880-13887、2009、Ohnuma, A (Ohnuma, Akira)
「Fine Control of Nitrogen Content in N-doped Titania Photocatalysts Prepared from Layered Titania/Isostearate Nanocomposites for High Visible-Light Photocatalytic Activity」、TOPICS IN CATALYSIS 巻: 52 号: 11、1584-1591、2009、Matsumoto, T (Matsumoto, Taki)
「Decahedral Single-Crystalline Particles of Anatase Titanium(IV) Oxide with High Photocatalytic Activity」、CHEMISTRY OF MATERIALS 巻: 21 号: 13、2601-2603、2009、Amano, F (Amano, Fumiaki)
「Nanowire-structured titanate with anatase titania: Characterization and photocatalytic activity」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 89 号: 3-4、583-589、2009、Amano, F (Amano, Fumiaki)
「Robust dye-sensitized overall water splitting system with two-step photoexcitation of coumarin dyes and metal oxide semiconductors」、CHEMICAL COMMUNICATIONS 号: 24、3577-3579、2009、Abe, R (Abe, Ryu)
「Photocatalytic activity of octahedral single-crystalline mesoparticles of anatase titanium(IV) oxide」、CHEMICAL COMMUNICATIONS 号: 17、2311-2313、2009、Amano, F (Amano, Fumiaki)
「Correlation between Photocatalytic Activities and Structural and Physical Properties of Titanium(IV) Oxide Powders」、CHEMISTRY LETTERS 巻: 38 号: 3、238-239、2009、Prieto-Mahaney, OO (Prieto-Mahaney, Orlando-Omar)
「A Facile Synthesis of Asymmetric Hybrid Colloidal Particles」、JOURNAL OF THE AMERICAN CHEMICAL SOCIETY 巻: 131 号: 4、1352-+、2009、Ohnuma, A (Ohnuma, Akira)
「Photochemical Shape Control of Cadmium Sulfide Nanorods Coated with an Amorphous Silica Thin Layer」、JOURNAL OF NANOSCIENCE AND NANOTECHNOLOGY 巻: 9 号: 1、506-513、2009、Torimoto, T (Torimoto, Tsukasa)
「Visible Light-Responsive Bismuth Tungstate Photocatalysts: Effects of Hierarchical Architecture on Photocatalytic Activity」、JOURNAL OF PHYSICAL CHEMISTRY C 巻: 113 号: 4、1536-1542、2009、Amano, F (Amano, Fumiaki)
「Visible light-induced photocatalytic reaction of gold-modified titanium(IV) oxide particles: action spectrum analysis」、CHEMICAL COMMUNICATIONS 号: 2、241-243、2009、Kowalska, E (Kowalska, Ewa)
「What is Degussa (Evonik) P25? Crystalline composition analysis, reconstruction from isolated pure particles and photocatalytic activity test」、JOURNAL OF PHOTOCHEMISTRY AND PHOTOBIOLOGY A-CHEMISTRY 巻: 216 号: 2-3、179-182、2010、Ohtani, B (Ohtani, B.)
「Alkali Metal Ion-Modified Vanadium Mononuclear Complex for Photocatalytic Mineralization of Organic Compounds」、CATALYSIS LETTERS 巻: 140 号: 1-2、27-31、2010、Amano, F (Amano, Fumiaki)
「What Are Titania Photocatalysts?-An Exploratory Correlation of Photocatalytic Activity with Structural and Physical Properties」、JOURNAL OF ADVANCED OXIDATION TECHNOLOGIES 巻: 13 号: 3、247-261、2010、Ohtani, B (Ohtani, Bunsho)
「Correlation between Surface Area and Photocatalytic Activity for Acetaldehyde Decomposition over Bismuth Tungstate Particles with a Hierarchical Structure」、LANGMUIR 巻: 26 号: 10、7174-7180、2010、Amano, F (Amano, Fumiaki)
「Highly Active Titania Photocatalyst Particles of Controlled Crystal Phase, Size, and Polyhedral Shapes」、TOPICS IN CATALYSIS 巻: 53 号: 7-10、455-461、2010、Amano, F (Amano, Fumiaki)
「Fabrication and photoelectrochemical property of tungsten(VI) oxide films with a flake-wall structure」、CHEMICAL COMMUNICATIONS 巻: 46 号: 16、2769-2771、2010、Amano, F (Amano, Fumiaki)
「Visible-light-induced photocatalysis through surface plasmon excitation of gold on titania surfaces」、PHYSICAL CHEMISTRY CHEMICAL PHYSICS 巻: 12 号: 10、2344-2355、2010、Kowalska, E (Kowalska, Ewa)
「Preparation of 3-D ordered macroporous tungsten oxides and nano-crystalline particulate tungsten oxides using a colloidal crystal template method, and their structural characterization and application as photocatalysts under visible light irradiation」、JOURNAL OF MATERIALS CHEMISTRY 巻: 20 号: 9、1811-1818、2010、Sadakane, M (Sadakane, Masahiro)
「Facile Preparation of Platelike Tungsten Oxide Thin Film Electrodes with High Photoelectrode Activity」、ACS APPLIED MATERIALS & INTERFACES 巻: 3 号: 10、4047-4052、2011、Amano, F (Amano, Fumiaki)
「Photoelectrochemical Hydrogen Evolution Using Copper-Indium-Sulfide Nanocrystalline Film Electrodes」、ELECTROCHEMISTRY 巻: 79 号: 10、804-806、2011、Amano, F (Amano, Fumiaki)
「Absorption and action spectra analysis of ammonium fluoride-doped titania photocatalysts」、PHYSICAL CHEMISTRY CHEMICAL PHYSICS 巻: 13 号: 40、18217-18227、2011、Dozzi, MV (Dozzi, Maria Vittoria)
「Effect of Photoexcited Electron Dynamics on Photocatalytic Efficiency of Bismuth Tungstate」、JOURNAL OF PHYSICAL CHEMISTRY C 巻: 115 号: 33、16598-16605、2011、Amano, F (Amano, Fumiaki)
「Preparation of decahedral anatase titania particles with high-level photocatalytic activity」、CATALYSIS TODAY 巻: 164 号: 1、391-394、2011、Sugishita, N (Sugishita, Noriyuki)
「Preparation and characterization of monometallic (Au) and bimetallic (Ag/Au) modified-titania photocatalysts activated by visible light」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 101 号: 3-4、504-514、2011、Zielinska-Jurek, A (Zielinska-Jurek, Anna)
「Photoelectrochemical Property of Tungsten Oxide Films of Vertically Aligned Flakes for Visible-Light-Induced Water Oxidation」、JOURNAL OF THE ELECTROCHEMICAL SOCIETY 巻: 158 号: 2、K42-K46、2011、Amano, F (Amano, Fumiaki)
「A Strategy for Amorphous Arrangement of Gold Nanoparticles Using Eccentric Hybrid Particles」、CHEMISTRY LETTERS 巻: 41 号: 10、1319-1321、2012、Ohnuma, A (Ohnuma, Akira)
「Preparation, characterization and photocatalytic performance of titania particles encapsulated in hollow silica shells as an efficient photocatalyst for redox-combined stereoselective synthesis of L-pipecolinic acid from L-lysine」、JOURNAL OF PHOTOCHEMISTRY AND PHOTOBIOLOGY A-CHEMISTRY 巻: 246、50-59、2012、Chandren, S (Chandren, Sheela)
「Preparation and Reaction of Titania Particles Encapsulated in Hollow Silica Shells as an Efficient Photocatalyst for Stereoselective Synthesis of Pipecolinic Acid」、CHEMISTRY LETTERS 巻: 41 号: 7、677-679、2012、Chandren, S (Chandren, Sheela)
「Location Control of Nanoparticles Using Combination of Top-down and Bottom-up Nano-fabrication」、JOURNAL OF PHOTOPOLYMER SCIENCE AND TECHNOLOGY 巻: 25 号: 4、449-453、2012、Yamamoto, H (Yamamoto, Hiroki)
「Photoelectrochemical properties of tungsten trioxide thin film electrodes prepared from facet-controlled rectangular platelets」、JOURNAL OF SOLID STATE ELECTROCHEMISTRY 巻: 16 号: 5、1965-1973、2012、Amano, F (Amano, Fumiaki)
「Enhanced photocatalytic activity of bismuth-tungsten mixed oxides for oxidative decomposition of acetaldehyde under visible light irradiation」、CATALYSIS COMMUNICATIONS 巻: 20、12-16、2012、Amano, F (Amano, Fumiaki)
「Fluorine-Doped TiO2 Materials: Photocatalytic Activity vs Time-Resolved Photoluminescence」、JOURNAL OF PHYSICAL CHEMISTRY C 巻: 117 号: 48、25586-25595、2013、Dozzi, MV (Dozzi, Maria Vittoria)
「Formation of nanoscale reaction field using combination of top-down and bottom-up nanofabricaiton」、MICROELECTRONIC ENGINEERING 巻: 110、369-373、2013、Yamamoto, H (Yamamoto, Hiroki)
「Controlled Array of Silver Nanoparticles on Nanopatterns」、JOURNAL OF PHOTOPOLYMER SCIENCE AND TECHNOLOGY 巻: 26 号: 4、495-499、2013、Yamamoto, H (Yamamoto, Hiroki)
「A study on the active sites for visible-light photocatalytic activity of phosphorus-doped titanium(IV) oxide particles prepared using a phosphide compound」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 140、327-332、2013、Iwase, M (Iwase, Motoki)
「Influence of Post-Treatment Operations on Structural Properties and Photocatalytic Activity of Octahedral Anatase Titania Particles Prepared by an Ultrasonication-Hydrothermal Reaction」、MOLECULES 巻: 19 号: 12、19573-19587、2014、Wei, ZS (Wei, Zhishun)
「Photocatalytic Activity vs Structural Features of Titanium Dioxide Materials Singly Doped or Codoped with Fluorine and Boron」、JOURNAL OF PHYSICAL CHEMISTRY C 巻: 118 号: 44、25579-25589、2014、Dozzi, MV (Dozzi, Maria Vittoria)
「Highly selective phenol production from benzene on a platinum-loaded tungsten oxide photocatalyst with water and molecular oxygen: selective oxidation of water by holes for generating hydroxyl radical as the predominant source of the hydroxyl group」、CATALYSIS SCIENCE & TECHNOLOGY 巻: 4 号: 11、3850-3860、2014、Tomita, O (Tomita, Osamu)
「Controlled arrangement of nanoparticles capped with protecting ligand on Au nanopatterns」、MICROELECTRONIC ENGINEERING 巻: 121、108-112、2014、Yamamoto, H (Yamamoto, Hiroki)
「Position Control of Metal Nanoparticles by Self-Assembly」、JOURNAL OF PHOTOPOLYMER SCIENCE AND TECHNOLOGY 巻: 27 号: 2、243-247、2014、Yamamoto, H (Yamamoto, Hiroki)
「Lanthanide co-doped TiO2: The effect of metal type and amount on surface properties and photocatalytic activity」、APPLIED SURFACE SCIENCE 巻: 307、333-345、2014、Reszczynska, J (Reszczynska, Joanna)
「Mono- and bi-metallic plasmonic photocatalysts for degradation of organic compounds under UV and visible light irradiation」、CATALYSIS TODAY 巻: 230、131-137、2014、Kowalska, E (Kowalska, E.)
「Enhanced Photocatalytic Activity by Particle Morphology: Preparation, Characterization, and Photocatalytic Activities of Octahedral Anatase Titania Particles」、CHEMISTRY LETTERS 巻: 43 号: 3、346-348、2014、Wei, ZS (Wei, Zhishun)
「Preparation, characterization and charge transfer studies of nickel - modified and nickel, nitrogen co-modified rutile titanium dioxide for photocatalytic application」、CHEMICAL ENGINEERING JOURNAL 巻: 239、149-157、2014、Dolat, D (Dolat, D.)
「Mechanism of the Formation of Hierarchical-structured Bismuth Tungstate Photocatalyst Particles through Counter-flow Supply of Bismuth and Tungsten Sources」、CHEMISTRY LETTERS 巻: 44 号: 12、1723-1725、2015、Hori, H (Hori, Haruna)
「The effect of anatase and rutile crystallites isolated from titania P25 photocatalyst on growth of selected mould fungi」、JOURNAL OF PHOTOCHEMISTRY AND PHOTOBIOLOGY B-BIOLOGY 巻: 151、54-62、2015、Markowska-Szczupak, A (Markowska-Szczupak, Agata)
「Morphology-dependent photocatalytic activity of octahedral anatase particles prepared by ultrasonication-hydrothermal reaction of titanates」、NANOSCALE 巻: 7 号: 29、12392-12404、2015、Wei, ZS (Wei, Zhishun)
「Hybrid photocatalysts composed of titania modified with plasmonic nanoparticles and ruthenium complexes for decomposition of organic compounds」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 178、133-143、2015、Kowalska, E (Kowalska, Ewa)
「Silver-modified titania with enhanced photocatalytic and antimicrobial properties under UV and visible light irradiation」、CATALYSIS TODAY 巻: 252、136-142、2015、Kowalska, E (Kowalska, E.)
「Titania photocatalysis through two-photon band-gap excitation with built-in rhodium redox mediator」、CHEMICAL COMMUNICATIONS 巻: 51 号: 2、298-301、2015、Kuncewicz, J (Kuncewicz, Joanna)
「Nitrogen-doped, metal-modified rutile titanium dioxide as photocatalysts for water remediation」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 162、310-318、2015、Dolat, D (Dolat, D.)
「Visible light activity of rare earth metal doped (Er3+, Yb3+ or Er3+/Yb3+) titania photocatalysts」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 163、40-49、2015、Reszczynska, J (Reszczynska, Joanna)
「A silver-inserted zinc rhodium oxide and bismuth vanadium oxide heterojunction photocatalyst for overall pure-water splitting under red light」、JOURNAL OF MATERIALS CHEMISTRY A 巻: 4 号: 8、3061-3067、2016、Kobayashi, R (Kobayashi, Ryoya)
「Partial Oxidation of Alcohols on Visible-Light-Responsive WO3 Photocatalysts Loaded with Palladium Oxide Cocatalyst」、ACS CATALYSIS 巻: 6 号: 2、1134-1144、2016、Tomita, O (Tomita, Osamu)
「Titania modification with a ruthenium(II) complex and gold nanoparticles for photocatalytic degradation of organic compounds」、PHOTOCHEMICAL & PHOTOBIOLOGICAL SCIENCES 巻: 15 号: 1、69-79、2016、Zheng, SZ (Zheng, Shuaizhi)
「Photocatalytic activity and luminescence properties of RE3+-TiO2 nanocrystals prepared by sol-gel and hydrothermal methods」、APPLIED CATALYSIS B-ENVIRONMENTAL 巻: 181、825-837、2016、Reszczynska, J (Reszczynska, Joanna)
「Hydraulically irreversible membrane fouling during coagulation-microfiltration and its control by using high-basicity polyaluminum chloride」、JOURNAL OF MEMBRANE SCIENCE 巻: 477、115-122、2015、Kimura, M (Kimura, Masaoki)
「Adsorptive virus removal with super-powdered activated carbon」、SEPARATION AND PURIFICATION TECHNOLOGY 巻: 107、79-84、2013、Matsushita, T (Matsushita, Taku)
「Aluminum concentrations of sand filter and polymeric membrane filtrates: A comparative study」、SEPARATION AND PURIFICATION TECHNOLOGY 巻: 119、58-65、2013、Matsui, Y (Matsui, Yoshihiko)
「Direct observation of solid-phase adsorbate concentration profile in powdered activated carbon particle to elucidate mechanism of high adsorption capacity on super-powdered activated carbon」、WATER RESEARCH 巻: 45 号: 2、761-767、2011、Ando, N (Ando, Naoya)
|
|
